XCMG

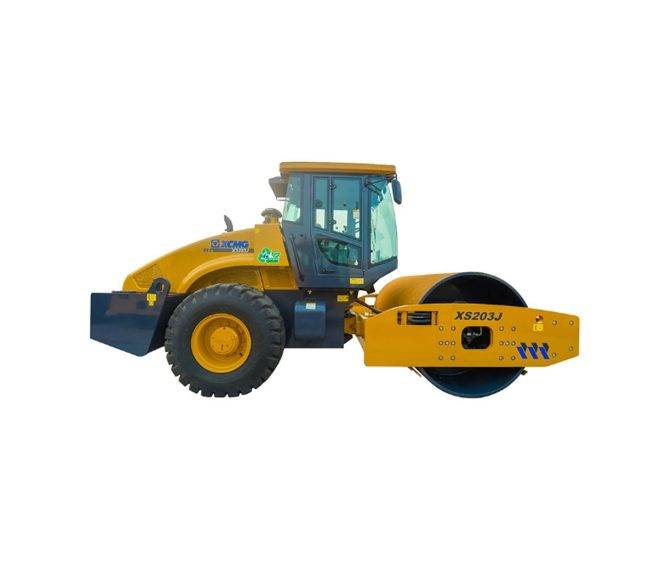

Single drum rollers & soil compactors XS203J
Operating Weight(kg)
20000
Axle Load Front(kg)
10000
Axle Load Rear(kg)
10000
- Road Machinery
Product Description
Our service
PRODUCT DESCRIPTION
XS203J vibratory road roller is a high-efficiency energy-saving super-heavy-duty mechanical-driven single-drum vibratory road roller independently developed by XCMG.This product is mainly applicable for the compacting of ground and is suitable for the compacting operations of pebble, sandy soil,moraine soil, blasted rock, and clay as well as for compacting of concrete and stabilized soil foundation materials in various large projects. it’s an idea compacting equipment for the construction of high-grade highways, airports, ports, dams, and industrial construction sites.
PARAMETERS
| Item | Unit | Parameter |
| Operating weight | kg | 20000 |
| Axle load,front | kg | 10000 |
| Axle load,rear | kg | 10000 |
| Static linear load | N/cm | 470 |
| Engine manufacturer | 一 | SDEC |
| Engine Model | SC8D175.2G2B1 | |
| Rated Power | kW/rpm | 128/1800 |
| Speed range(Forward) | ||
| Speed(1) | km/h | 2.95 |
| Speed(2) | km/h | 5.78 |
| Speed(3) | km/h | 9.4 |
| Speed(4) | km/h | |
| Speed range(Backward) | ||
| Speed(1) | km/h | |
| Speed(2) | km/h | |
| Speed(3) | km/h | |
| Vibration frequency | Hz | 28/33 |
| Vibration amplitude | mm | 1.9/0.95 |
| Centrifugal force | kN | 353/245 |
| Working width | mm | 2130 |
| Max. gradeability | % | 30 |
| Track radius, out | mm | 6500 |
| Overall dimensions | mm | 6220x2300x3200 |
- Road Machinery

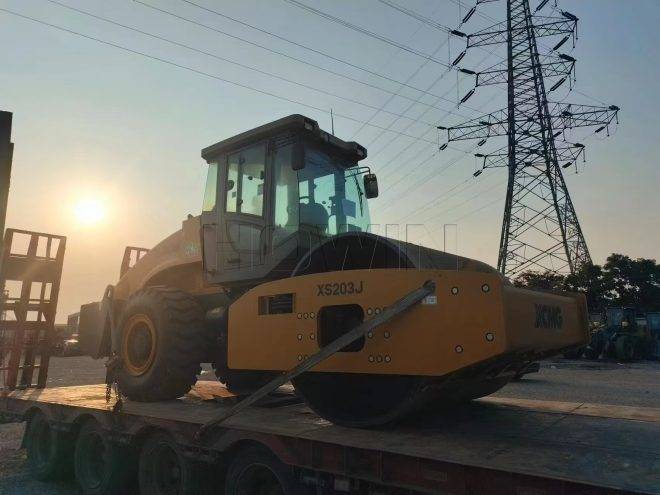

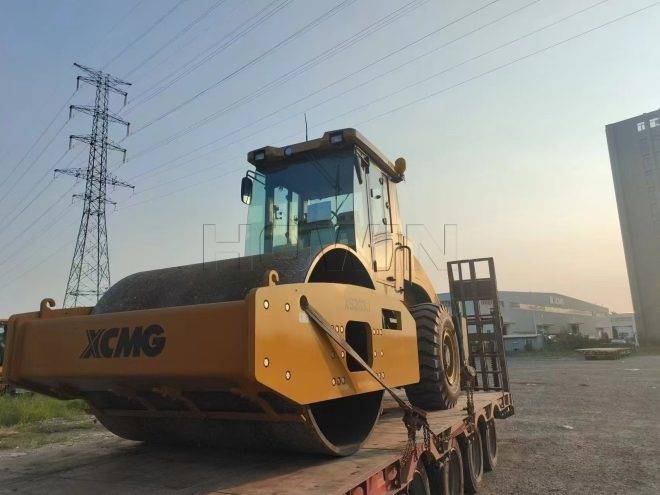

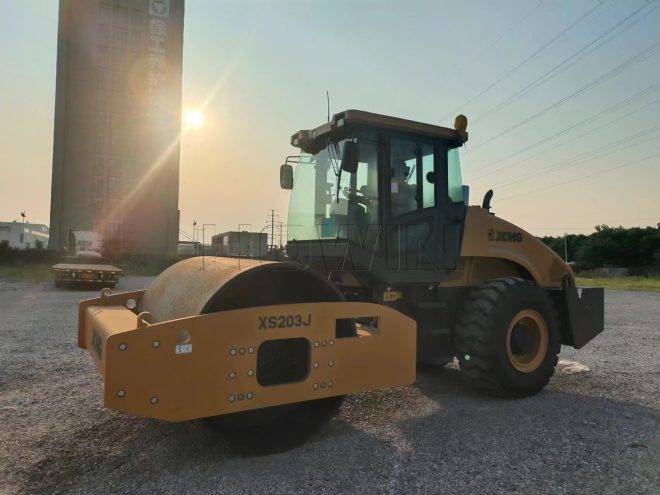

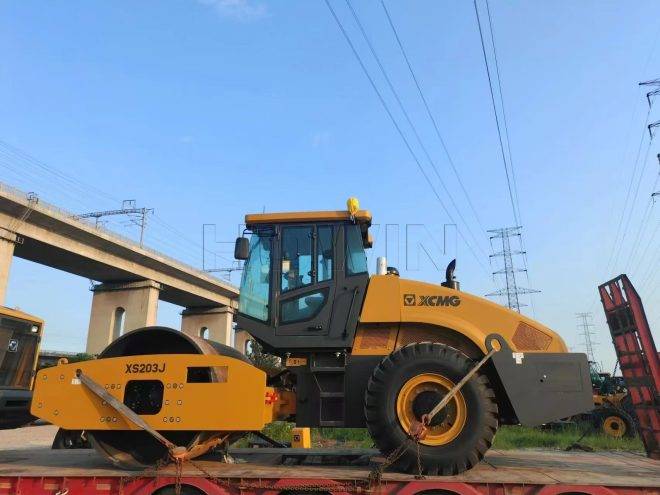

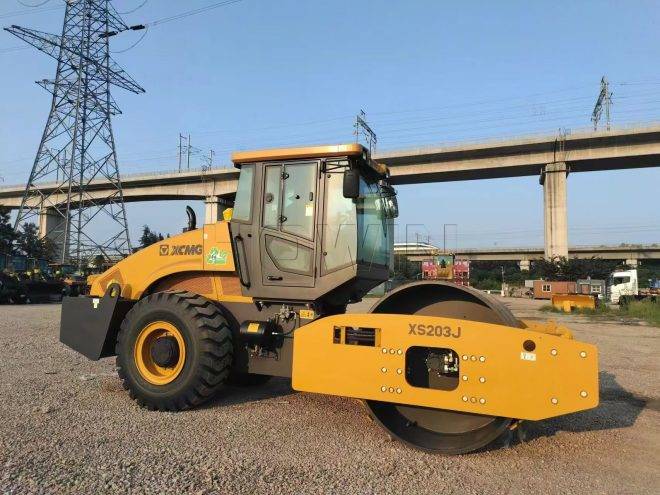

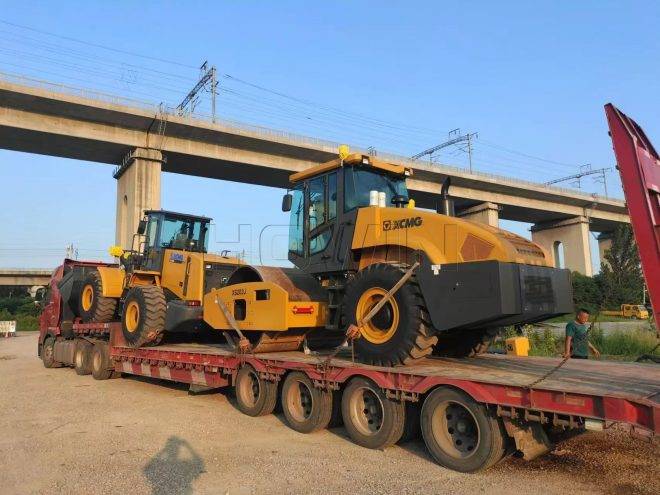

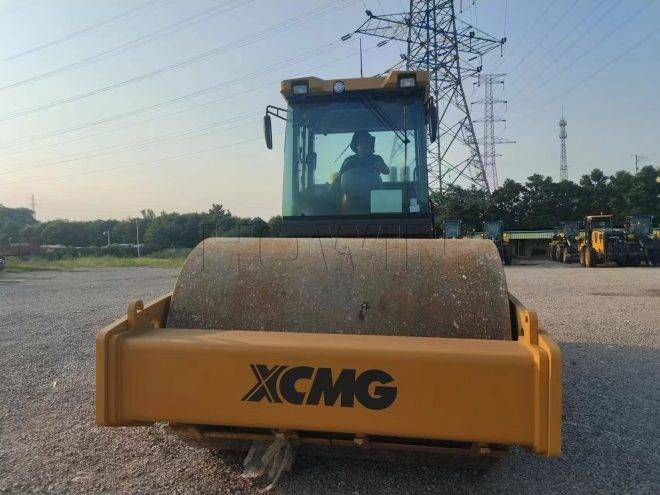

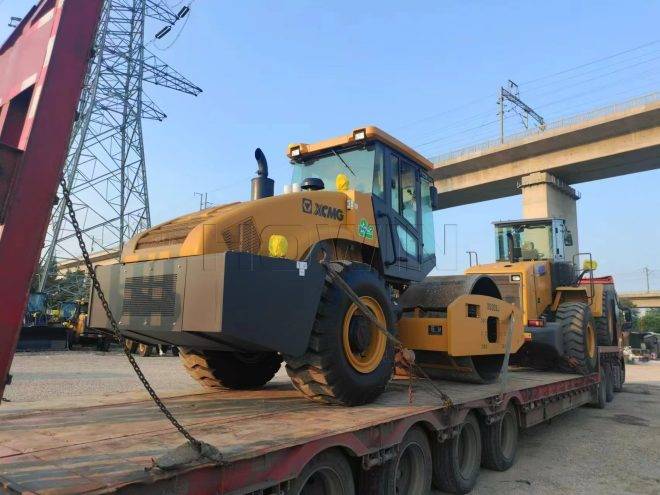

Product Detilas
