SINOTRUK

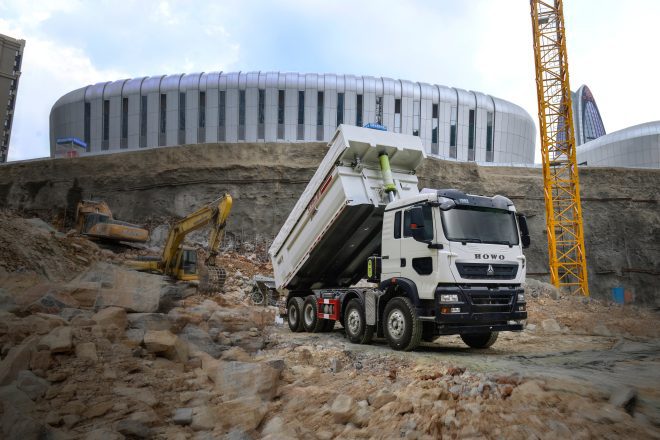

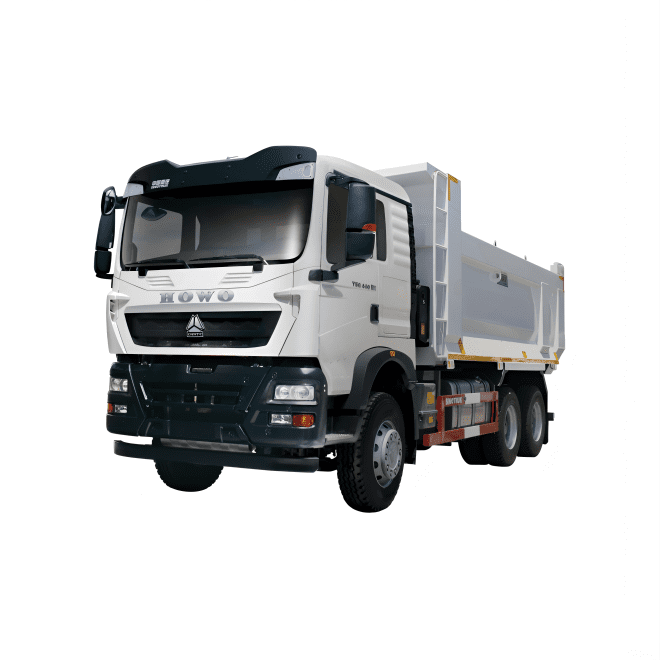

HOWO TX 6×2 Dump Truck
Driving Type
6×4
Engine Power
371 HP
Application
Lower fuel consumption and a more robust chassis make it the ideal choice for engineering transportation
- Dump Truck
Product Description
Our service
PRODUCT FEATURE
The HOWO-TX chassis is constructed from high-strength steel, providing exceptional resistance to compression, torsion, and impact. The frame is engineered to handle both the heavy loads of cargo transport and the intense vibrations encountered on challenging roads, providing the strength necessary for vehicle stability and long-lasting durability.
PARAMETERS
| Drive type | 6×4 | |
| Kerb Weight(kg) | 9500 | |
| GCW(kg) | 70000 | |
| Dimensions LxWxH(mm) | 9600x2500x3120 | |
| Wheelbase(mm) | 3825+1350 | |
| Cabin | Model | H77L(with 1 bunk) |
| Engine | Model | WD615, WP12 |
| Horse Power(HP) | 371, 400 | |
| Maximum torque (N·m/rpm) | 2300N · m/1050-1400rpm | |
| Rated power(kW/rpm) | 353kW/1900rpm | |
| Transmission | Model | HW19710 |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD95 9500 kg |
| Rear axle Load capacity(kg) | MCX16ZG 2×16000 kg | |
| Ratio | 5.451 | |
| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Front leaf spring | 10 PCS |
| Rear leaf spring | 12 PCS | |
| Fuel tank capacity | Volume(L) | 400 |
| Tire | Model | 315/80R22.5 |
| Suspension | Type | Leaf springs(3/9+6) |
| Steering | Model | Bosch |
| Fifth Wheel | Model | 2.5 inch |
| Fuel tank capacity | Volume(L) | 600 |
| Tire | Mode | 12.00R24,315/80R22.5 |
