SINOTRUK
HOWO 8×4 Milk Tank Truck
Driving Type
8×4
Tank Volume(Liter)
30,000
Application
Dairy Industry,Dairy Industry
- Tank Truck
Product Description
Our service
PRODUCT FEATURE

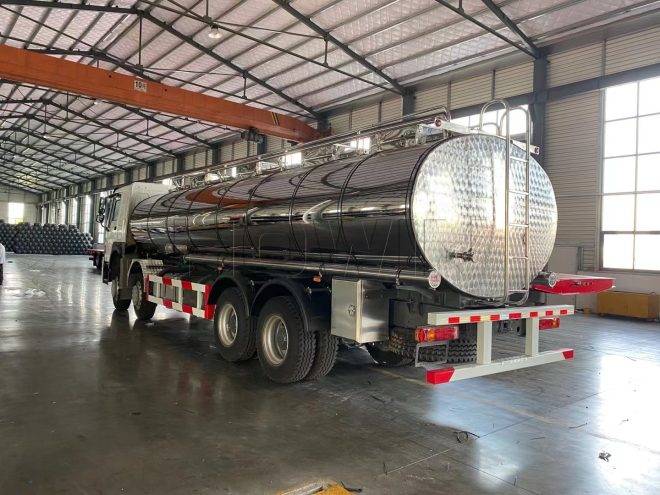

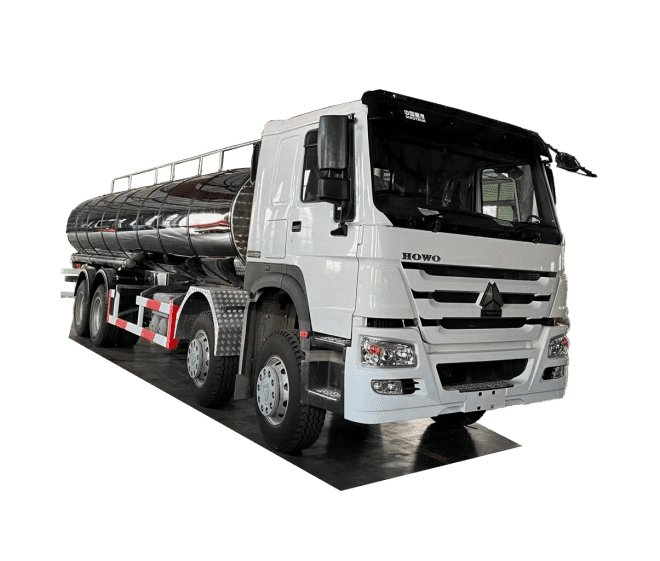

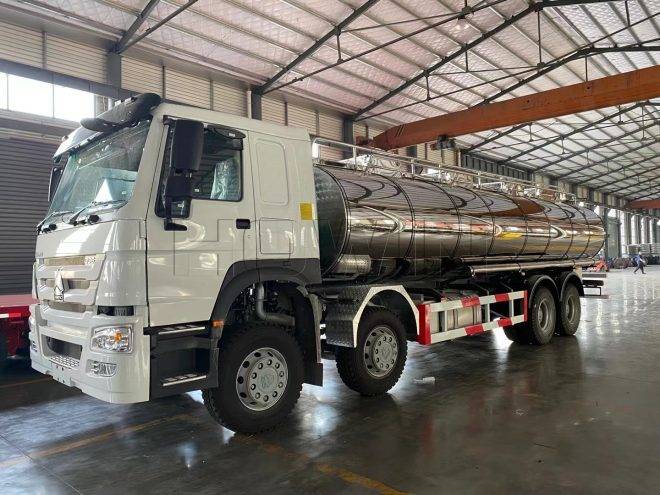

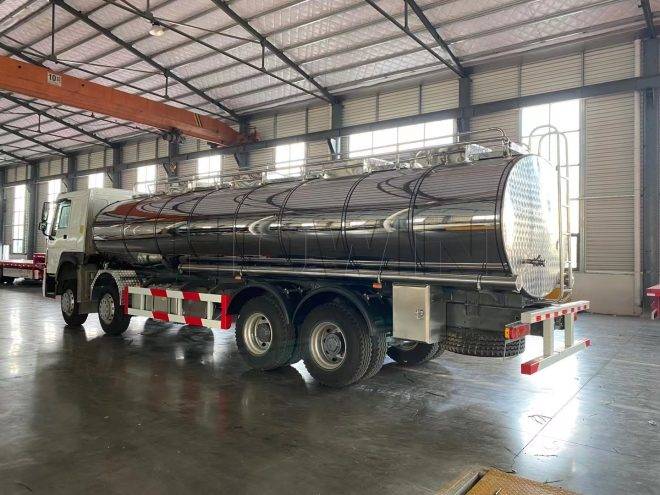

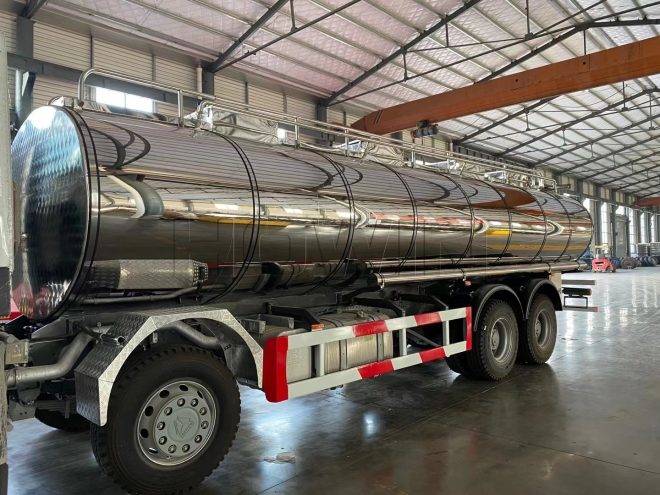

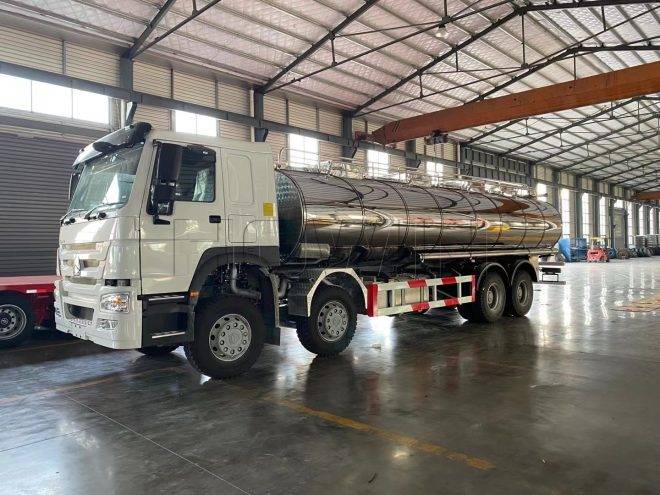

HOWO 7 8×4 Milk Tank Truck is a specialized vehicle designed for the safe and efficient transport of milk or other liquid food products. Its features are optimized for maintaining product quality during transit while ensuring high efficiency and safety.
PARAMETERS
| Model | HOWO7 8×4 WATER TANK TRUCK | |
| Chassis Model | ZZ1317V4667B1 | |
| Drive type | 8×4 | |
| Kerb Weight(kg) | 15000 | |
| Payload(kg) | 40000 | |
| Dimensions LxWxH(mm) | 11500×2500×3500 | |
| Wheelbase(mm) | 1800+4600+1350 | |
| Cabin | Model | H76 |
| Engine | Model | WP12.400E201 |
| Horse Power(Hp) | 400 | |
| Maximum torque(N ·m/rpm) | 1800N·m/1050-1400rpm | |
| Rated power(kW/rpm) | 294kw/1900rpm | |
| Emission | Euro Ⅱ | |
| Displacement | 11.596 | |
| Transmission | Model | HW19710+HW50 |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD95 (Drum) 9500 |
| rear axle Load capacity(kg) | MCP16ZG 16000×2 | |
| Ratio | 4.80 | |
| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Type | Leaf springs(10/12) |
| Steering | Model | Bosch |
| Fuel tank capacity | Volume(L) | 600 |
| Tire | ModeL | 12.00R24,315/80R22.5 |
| Tank body | Tank volume | 30,000 |
| Material | Stainless steel (304 or 316L) | |
| Manhole | One Euro standar | |
| Compartments | Single or multiple compartments with anti-surge baffles | |
| Hygiene System | CIP (Clean-In-Place) System | Optional |
| Drainage | ||
| Cooling system | ||

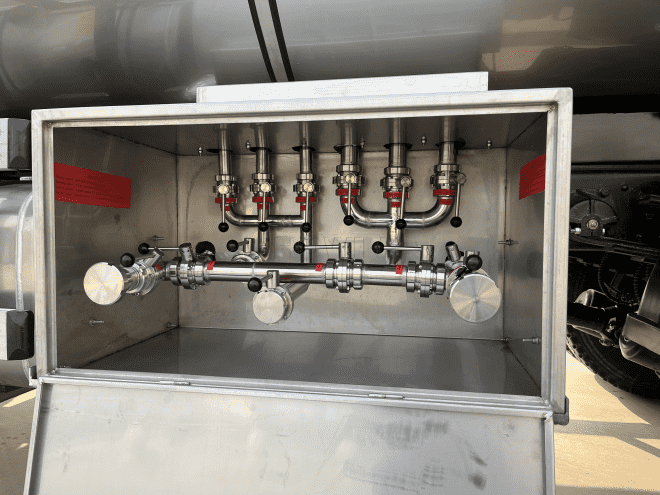

| Pump System | Milk inlet pump | Europ food grade |
| Milk outlet pump | Europ food grade | |
- Tank Truck
Product Detilas
