SINOTRUK

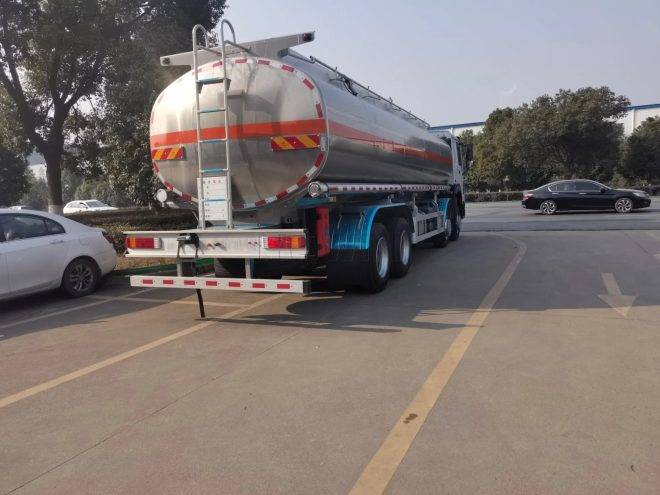

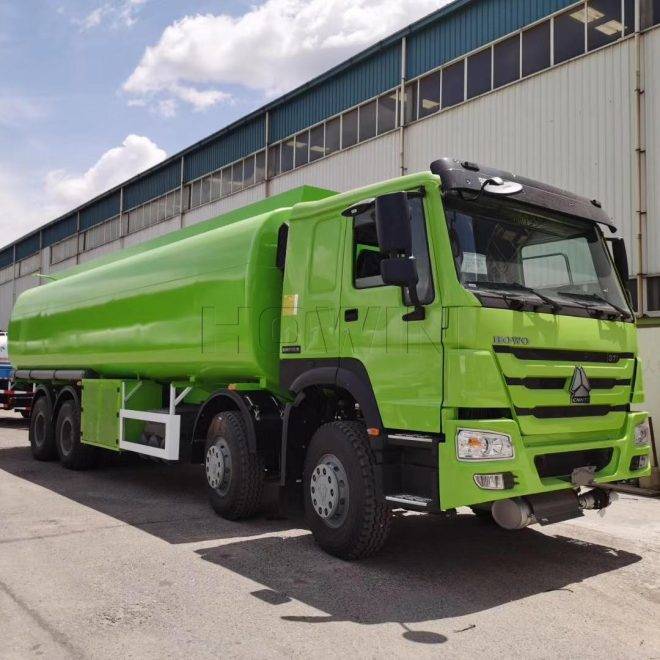

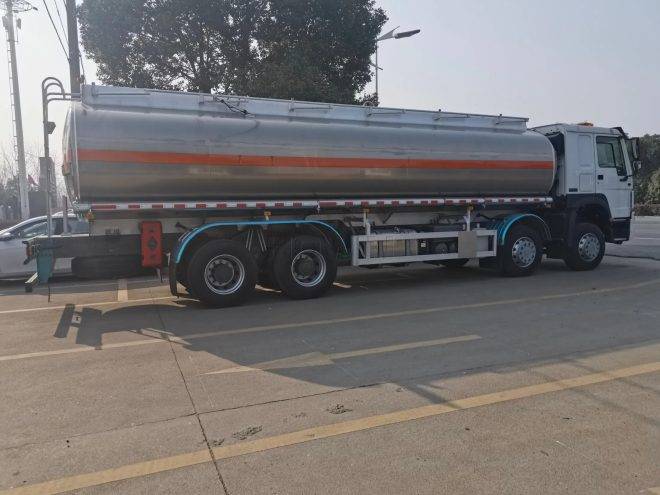

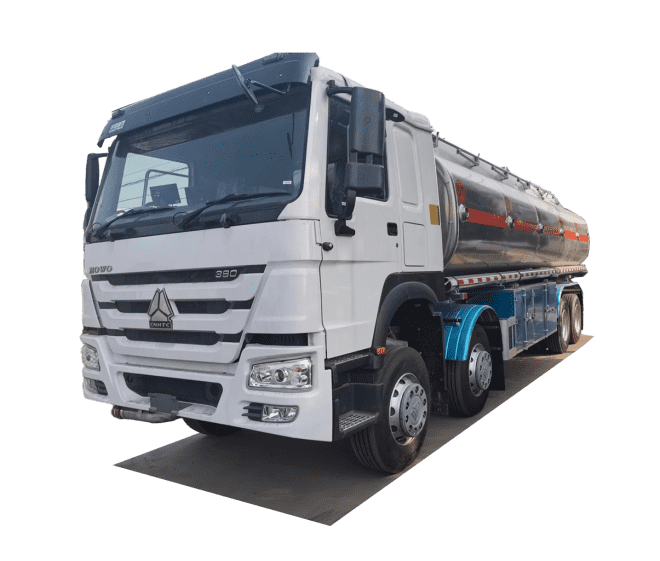

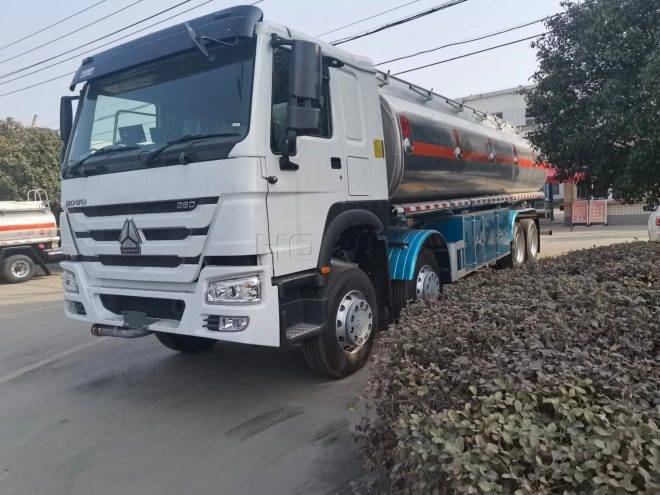

HOWO 8×4 Fuel Tank Truck
Driving Type
8×4
Tank Volume(Liter)
30,000
Application
Construction sites, municipal services
- Tank Truck
Product Description
Our service
PARAMETERS
| Model | HOWO7 8×4 WATER TANK TRUCK | |
| Chassis Model | ZZ1317V4667B1 | |
| Drive type | 8×4 | |
| Kerb Weight(kg) | 15000 | |
| Payload(kg) | 40000 | |
| Dimensions LxWxH(mm) | 11500×2500×3500 | |
| Wheelbase(mm) | 1800+4600+1350 | |
| Cabin | Model | H76 |

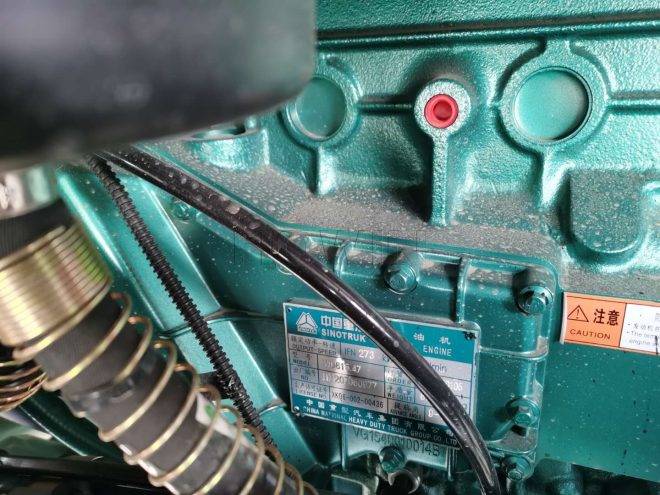

| Engine | Model | WP12.400E201 |
| Horse Power(Hp) | 400 | |
| Maximum torque(N ·m/rpm) | 1800N·m/1050-1400rpm | |
| Rated power(kW/rpm) | 294kw/1900rpm | |
| Emission | Euro Ⅱ | |
| Displacement | 11.596 | |
| Transmission | Model | HW19710+HW50 |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD95 (Drum) 9500 |
| rear axle Load capacity(kg) | MCP16ZG 16000×2 | |
| Ratio | 4.80 | |

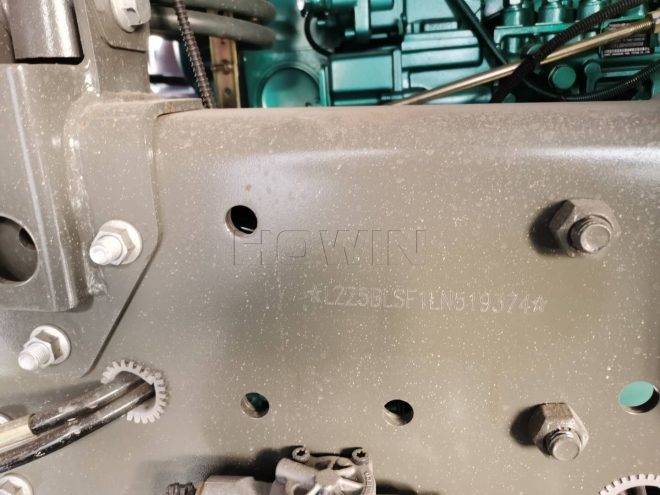

| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Type | Leaf springs(10/12) |
| Steering | Model | Bosch |
| Fuel tank capacity | Volume(L) | 600 |
| Tire | ModeL | 12.00R24,315/80R22.5 |
| Tank body | Tank volume | 30,000 |
| Materia | Carbon steel/ aluminium | |
| Tank thickness | 8/6/8 mm | |
| Manhole | Optional | |
| Compartments | Single or multiple compartments with anti-surge baffles | |
| Discharge valve | Optional | |
- Tank Truck
Product Detilas
