SINOTRUK

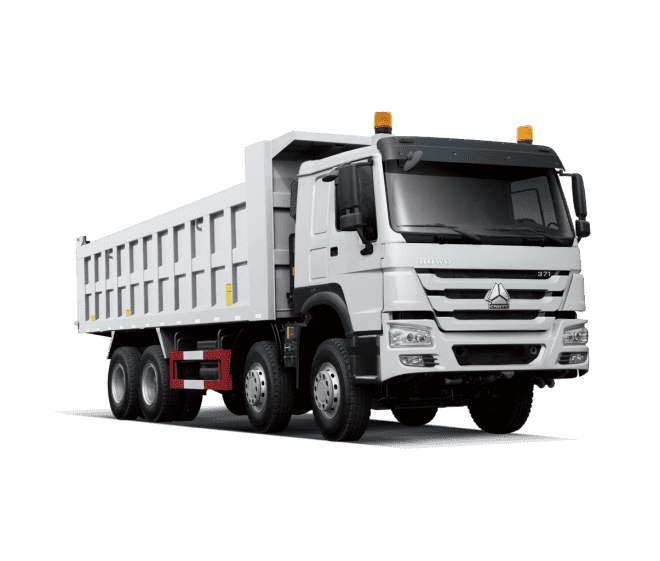

HOWO 7 8×4 Dump Turck
Driving Type
8×4
Box Body(mm)
7300*2300*1500
Application
Construction, mining, and other heavy-duty transport operations
- Dump Truck
Product Description
Our service
PRODUCT FEATURE
1. High Load Capacity: Optimized for carrying heavy loads over long distances.
2. Durable Build: Reinforced components ensure long-term reliability.
3. Fuel Efficiency: Advanced engine designs reduce fuel consumption.
4. Wide Application Range: Versatile for construction, mining, and logistics.
5. Cost-Effective: Offers excellent value with competitive pricing and low operational costs.
PARAMETERS
| Model | HOWO-7 25m³ dump truck | |
| Chassis Model | ZZ3317V3867B1 | |
| Drive type | 8×4 | |
| Kerb Weight(kg) | 15200 | |
| Payload(kg) | 45000 | |
| Dimensions LxWxH(mm) | 10300x2500x3400 | |
| Wheelbase(mm) | 1800+3500+1350 | |
| Cabin | Model | H76 |
| Engine | Model | WP12.400E201 |
| Horse Power(Hp) | 400 | |
| Maximum torque(N ·m/rpm) | 2300N·m/1050-1400rpm | |
| Rated power(kW/rpm) | 294kw/1900rpm | |
| Emission | Euro Ⅱ | |
| Displacement | 11.596 | |
| Transmission | Model | HW19710 |
| TYPE | MT | |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD95 (Drum) 9500×2 |
| rear axle Load capacity(kg) | HC16 (Drum) 16000×2 | |
| Ratio | 5.451 | |
| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Type | Leaf springs(10/12) |
| Steering | Model | Bosch |
| Fuel tank capacity | Volume(L) | 300 |
| Tire | Mode | 12.00R24,315/80R22.5 |
| Superstructure | body size(mm) | 7300 ×2300× 1500 |
| Thinkness(mm) | bottom 8 ,side 6 | |
| Lift type | Front , HYVA cylinder | |
- Dump Truck

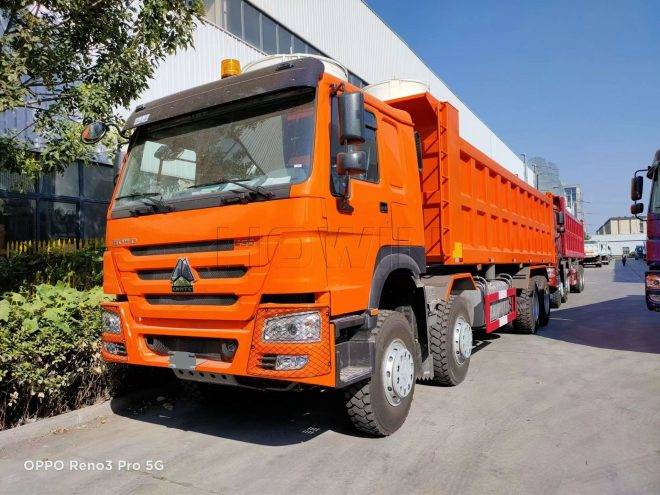

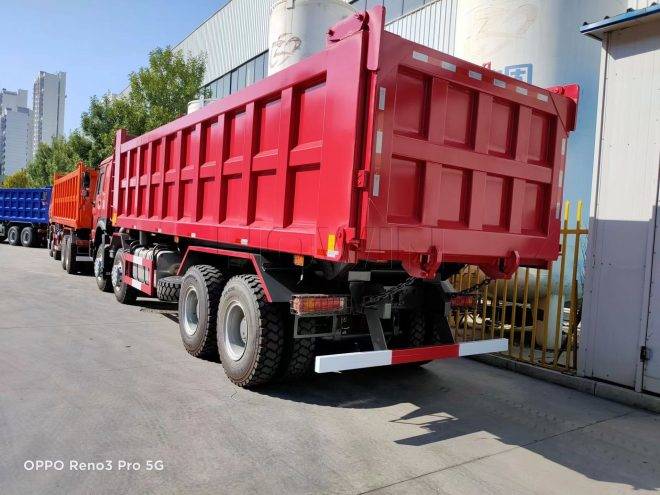

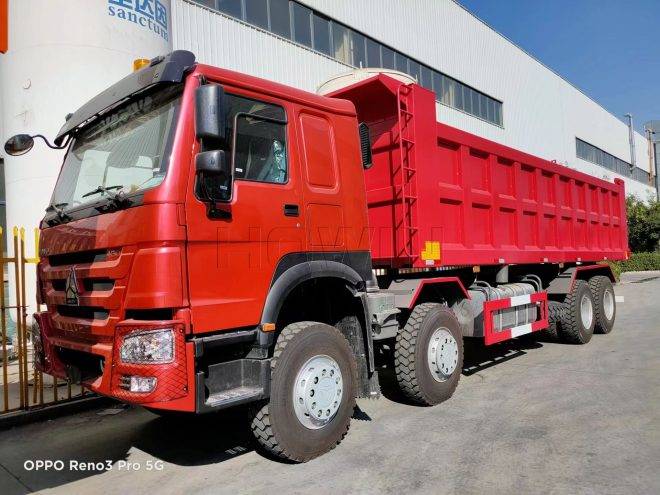

Product Detilas
