SINOTRUK

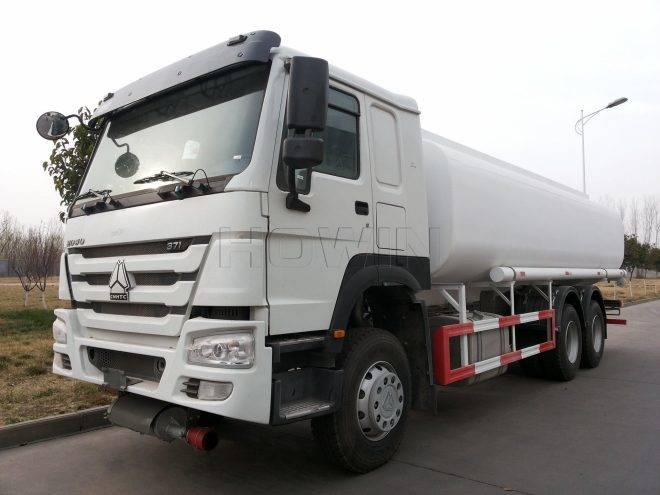

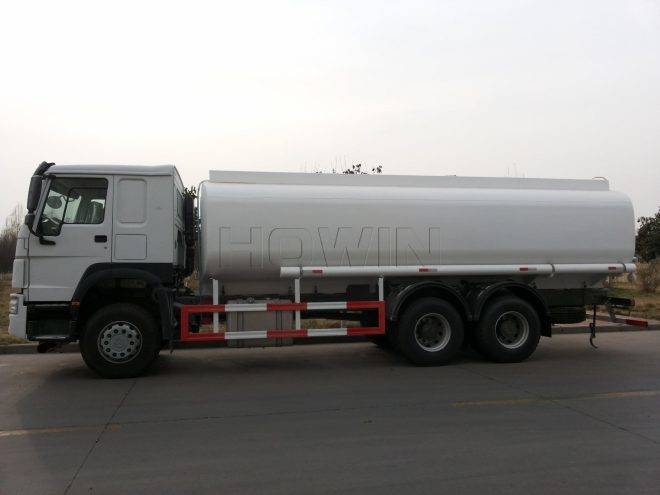

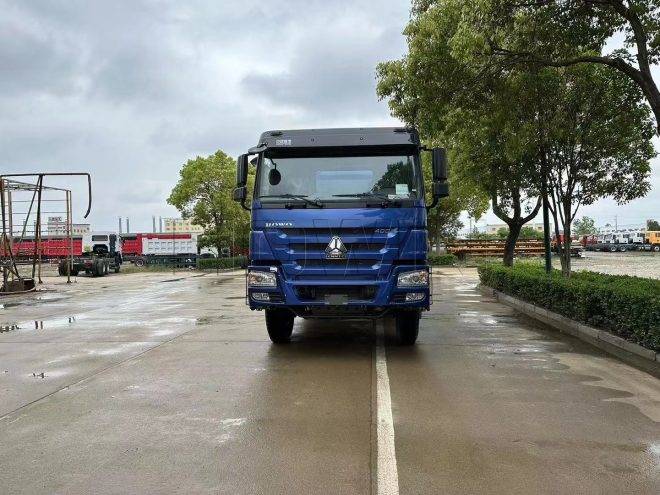

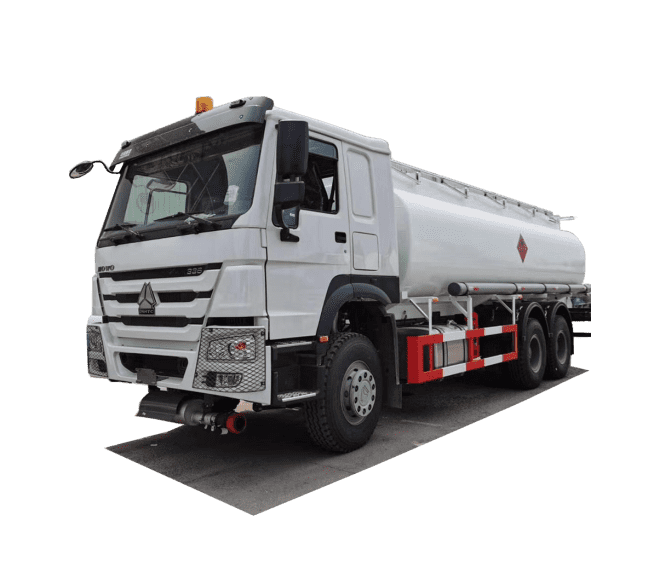

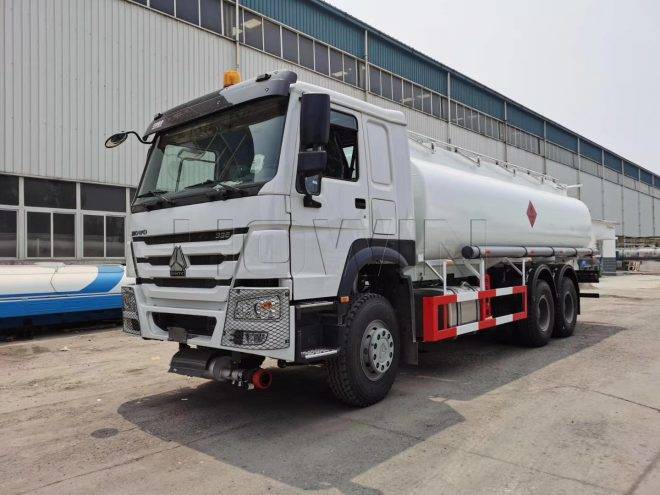

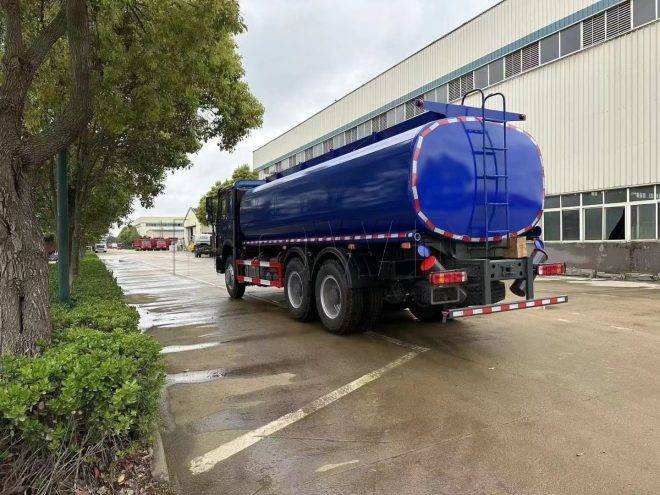

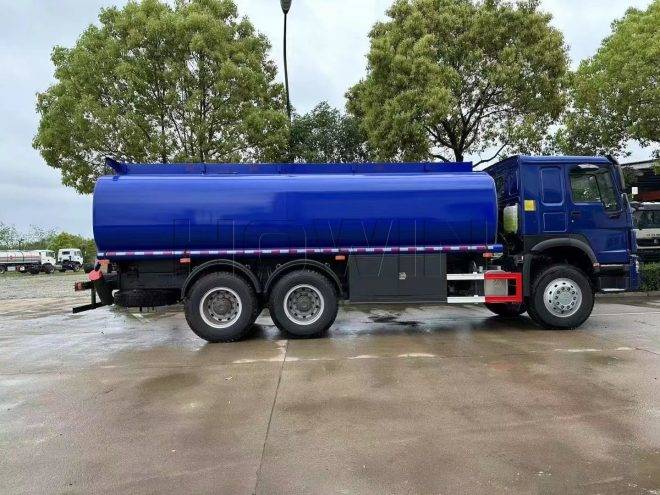

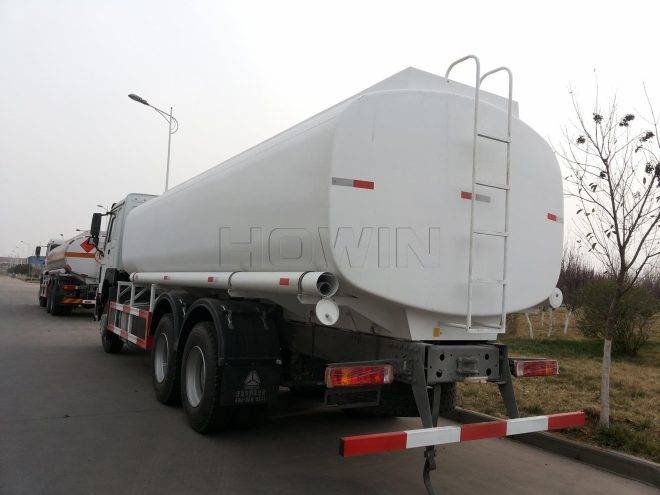

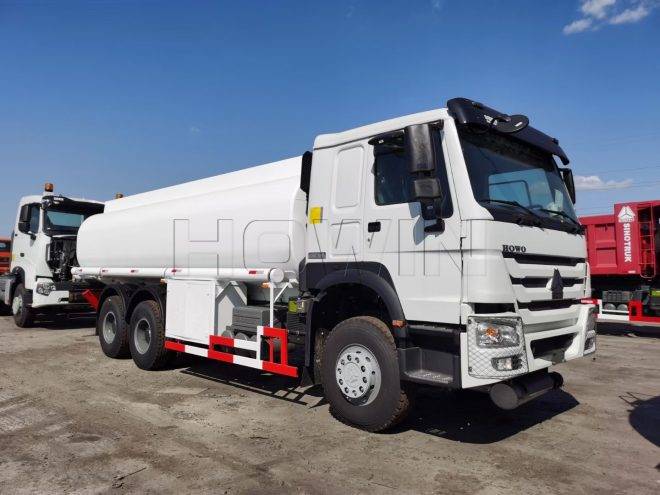

HOWO 6×4 Fuel Tank Truck
Driving Type
6×4
Tank Volume(Liter)
20,000
Application
Transporting diesel, gasoline, kerosene, and other liquid fuels to airport ,sites, fuel station
- Tank Truck
Product Description
Our service
PRODUCT FEATURE
refueling truck, also known as a fuel dispenser truck or mobile fuel tanker, is a specialized vehicle designed to refuel aircraft, heavy machinery, vehicles, or equipment in various industries, including aviation, construction, and logistics.
PARAMETERS
| Model | HOWO7 6×4 refueling truck | |
| Chassis Model | ZZ3257V3847B1 | |
| Drive type | 6×4 | |
| Kerb Weight(kg) | 13500 | |
| Payload(kg) | 25000 | |
| Dimensions LxWxH(mm) | 9800×2500×3310 | |
| Wheelbase(mm) | 4300+1350 | |
| Cabin | Model | H76 |
| Engine | Model | WD615.47 |
| Horse Power(Hp) | 371 | |
| Maximum torque(N ·m/rpm) | 1900N·m/1050-1400rpm | |
| Rated power(kW/rpm) | 273kw/2200rpm | |
| Emission | Euro Ⅱ | |
| Type | 4-stroke direct injection , 6-cylinder in-line,with water cooling, turbo-charged and inter-cooled | |
| Displacement | 10 L | |
| Transmission | Model | HW19710 |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD95 (Drum) 9500 |
| rear axle Load capacity(kg) | MCP16ZG 16000×2 | |
| Ratio | 5.73 | |
| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Type | Leaf springs(10/12) |
| Steering | Model | Bosch |
| Fuel tank capacity | Volume(L) | 600 |

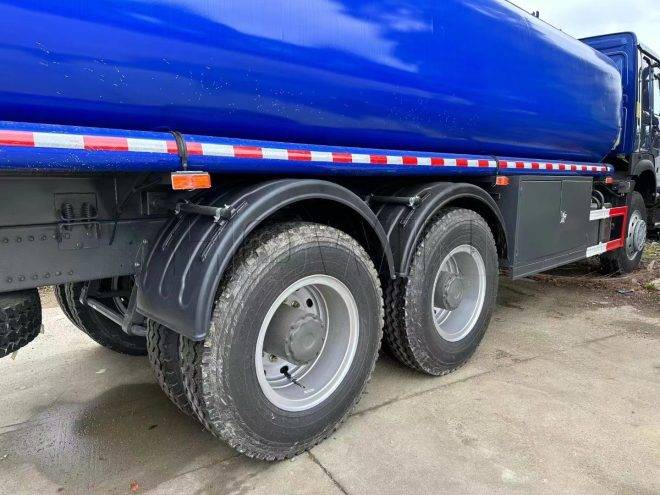

| Tire | Mode | 12.00R24 / 315/80R22.5 |
| Tank body | Tank volume | 20,000 |
| Tank thickness | Q235 8/6/8 mm | |
| Compartment | Five units | |
| Manhole | Five Euro standar | |
| Discharge valve | Five units | |

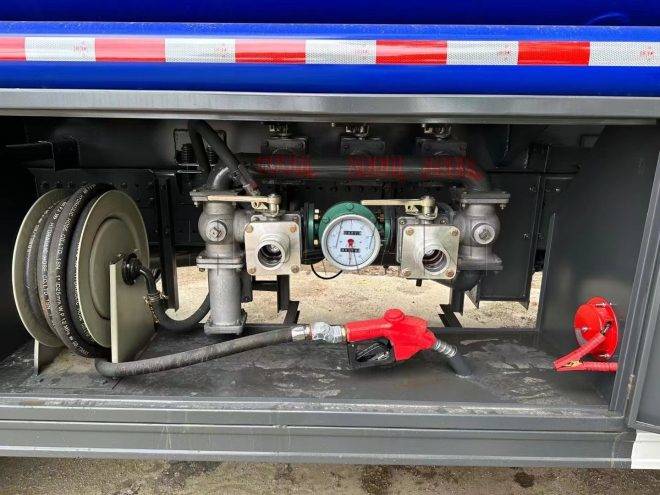

| Refueling charger with flowmeter | Optional | |
