SINOTRUK
HOMAN 4×2 Water Tank Truck
Driving Type
4×2
Tank Volume(Liter)
10,000
Application
Firefighting, municipal Cleaning and construction Site
- Tank Truck
Product Description
Our service
PRODUCT FEATURE
1. Suitable for a wide range of tasks
2.The 4×2 configuration allows for better fuel economy compared to larger trucks, making it cost-effective for everyday operations
3. Smaller size of the truck makes it ideal for tight spaces and urban environments.
PARAMETERS
| Model | HOWO 4×2 WATER TRUCK | |
| Chassis Model | ZZ3158E3415C1R | |
| Drive type | 4×2 | |
| Kerb Weight(kg) | 6880 | |
| payload (kg) | 10000 | |
| Dimensions LxWxH(mm) | 7900*2450*2850 | |
| Wheelbase(mm) | 3650 | |
| Cabin | Model | 2080 |
| Engine | Model | YC4E160-33 |
| Horse Power(Hp) | 160 | |
| Rated power(kW/rpm) | 118kW/2600rpm | |
| Emission | Euro III | |
| Displacement | 4.26 | |
| Transmission | Model | 8JS85F |
| Gear position | 7 forwards &1 reverses | |
| AXLE | Front axle Load capacity(kg) | 3600 |
| rear axle Load capacity(kg) | 10000 | |
| Ratio | 6.33 | |
| Chassis | Thinkness(mm) | 9/11+8 |
| Leaf spring | Type | 280×（8+5） |
| Tire | Mode | 10.00R20 |
| Tank body | Tank volume | 6,000-10,000 |
| Tank thickness | Q235/4mm | |
| Manhole | One Euro standar | |
| Water System | Front flush nozzles | Optional |
| Side sprinkler | ||
| Rear sprayer bar | ||
| Pump System | water inlet pump | Optional |
| water outlet pump | ||
| Water cannon | ||
- Tank Truck

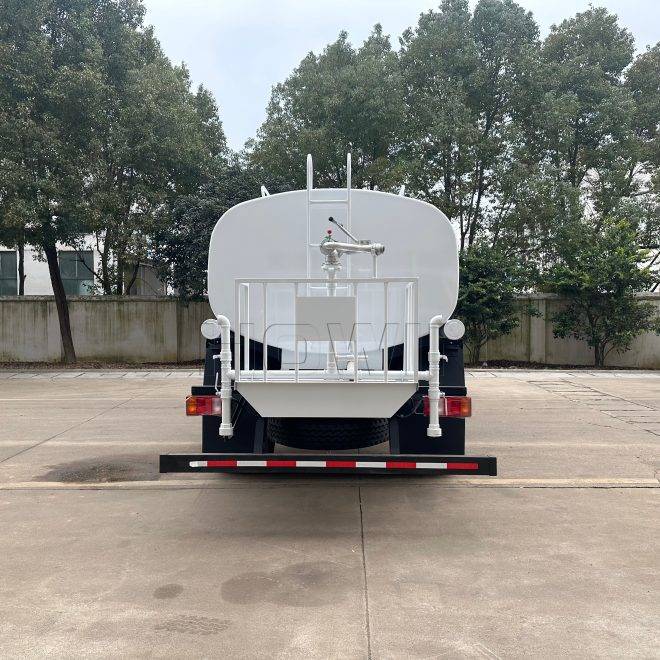

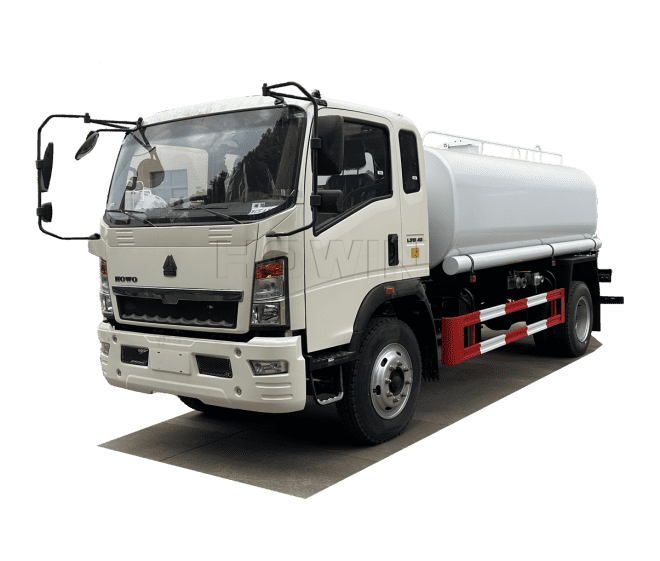

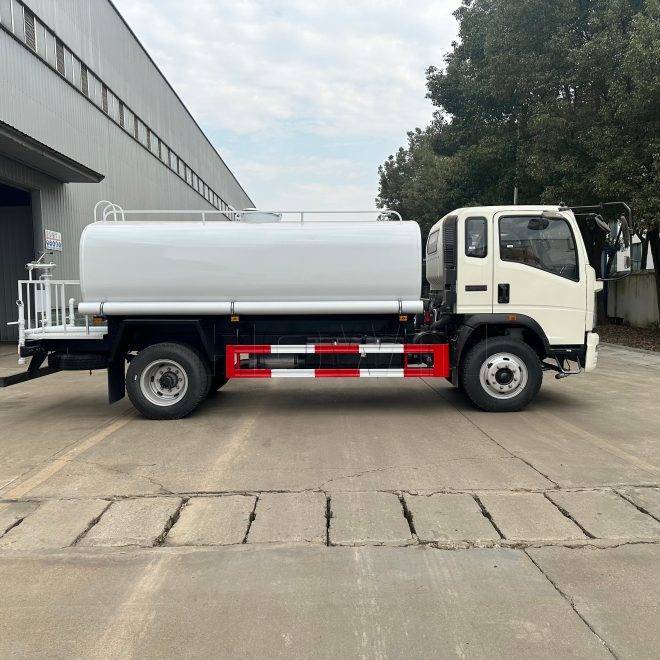

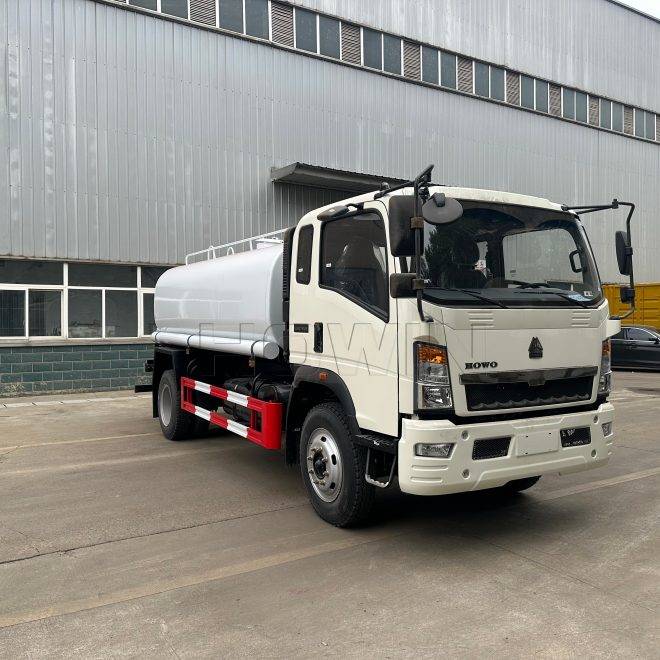

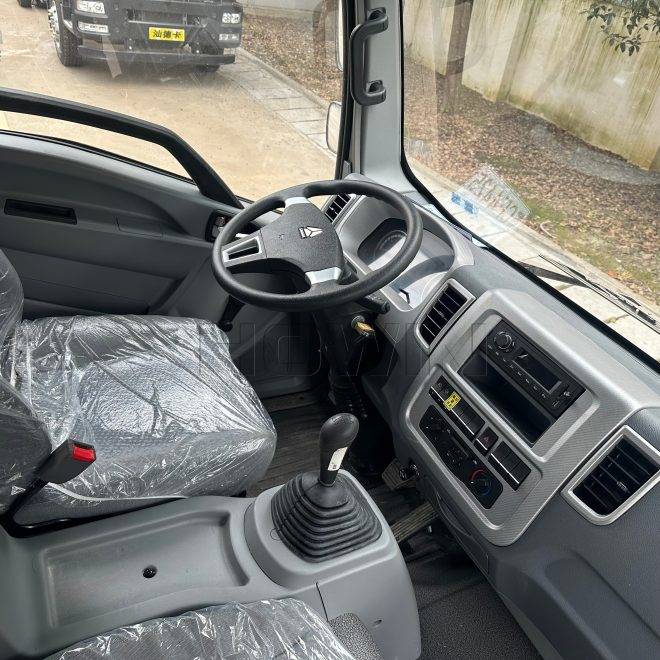

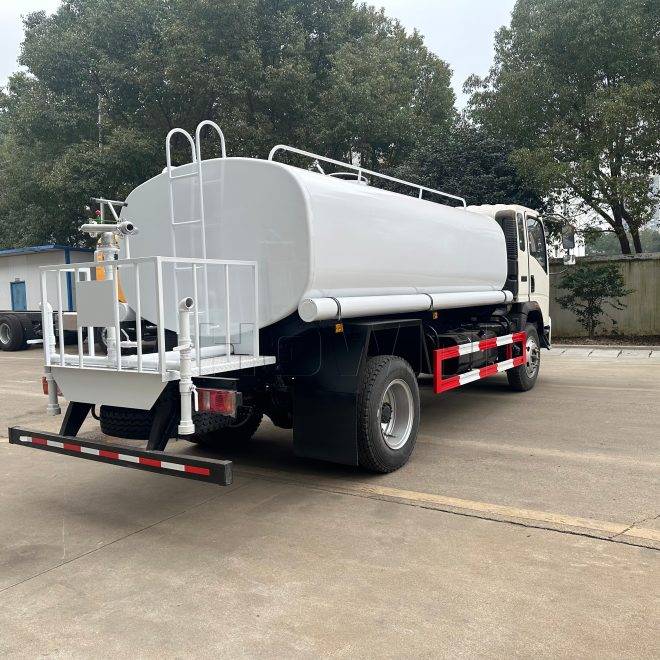

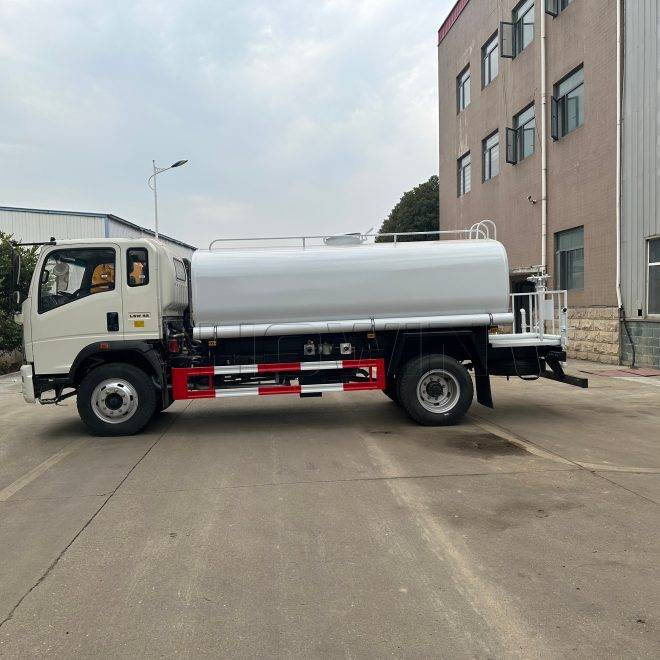

Product Detilas
