HOWIN

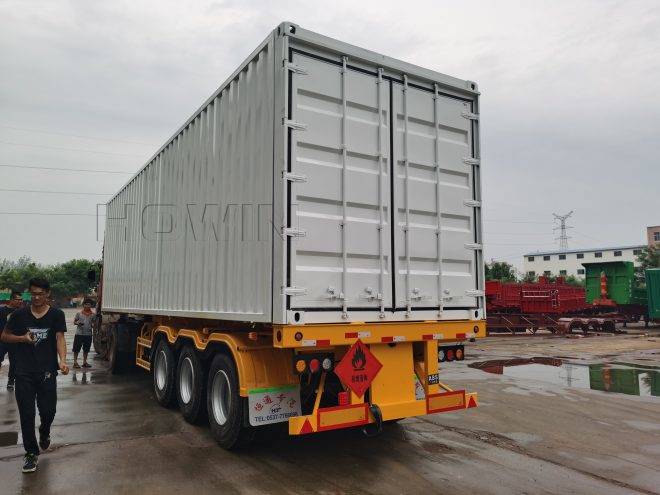

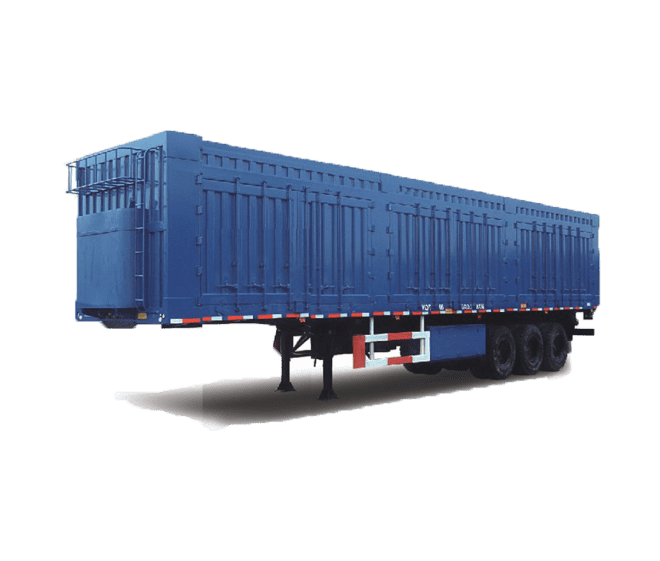

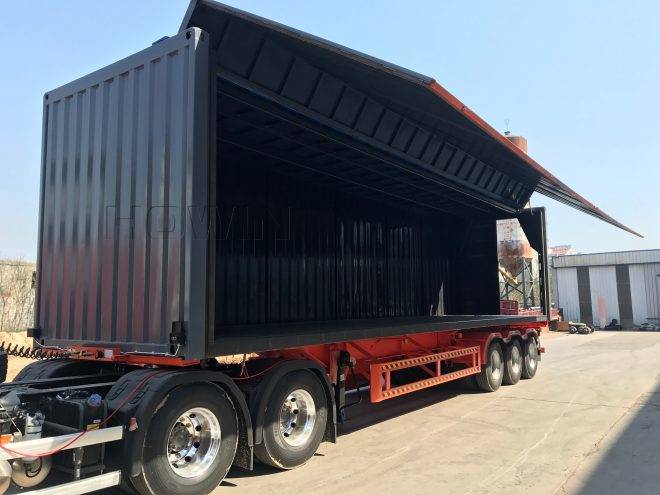

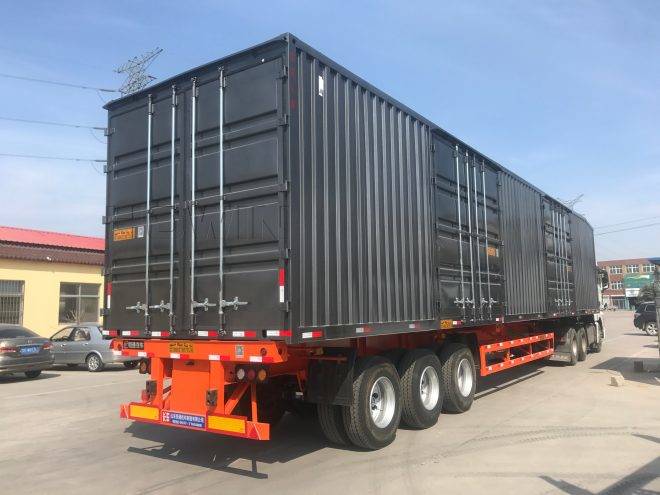

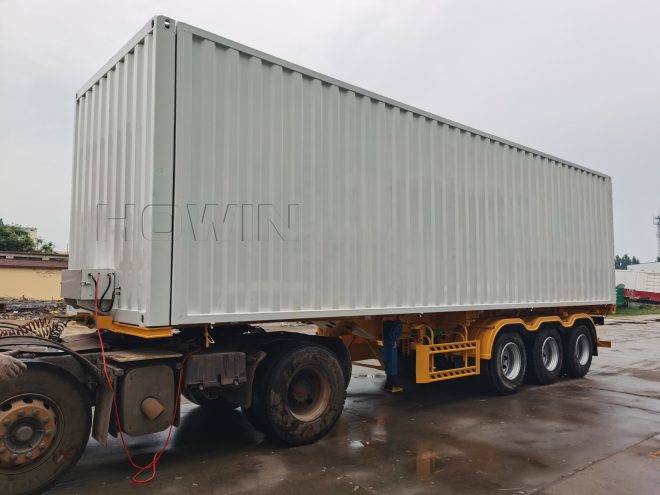

40Ft 3Axles Van Semi Trailer
Axle Quantity
3 Axles
Van Box(m³)
Payload(kg)
60
- Van semi-trailer
Product Description
Our service
VEHICLE CONFIGURATION
| Overal Dimension | 12500mm*2600mm*2400mm |
| Loading capacity | 60, 000 kg |
| Chassis | Material:Q345B, I beam height:500mm , Thickness of flange (upper, middle, bottom):14/8/16mm |
| Axle | BPW, FUWA, HJ |
| Platform plate | 3mm |
| Van | height:2000mm, 2500mm, customized |
| Suspension | Mechanical Suspension or booster Suspension |
| leaf spring | 10 pcs 90mm*130mm |
| Brake system | Dual line braking system , Wabco brand relay valve , |
| King Pin | JOST brand 2.5 inch or 3 inch |
| Landing Gear | Jost brand 28 tons |
| Tyre | 12R22.5,12.00R20, 315/80R22.5, 385/65R22.5 |
| Accessories | 1000 L Fuel tank, standard tool box, side guard , refrigerator |
- Van semi-trailer
Product Detilas
