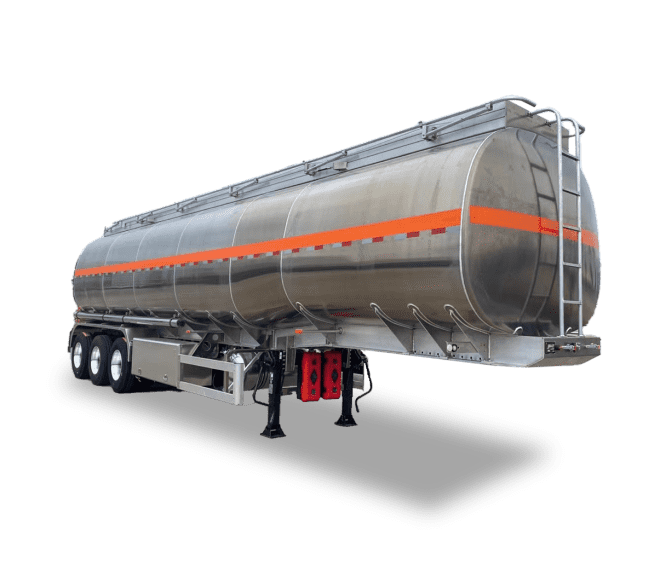

3Axles Fuel Tank Semi Trailer(Aluminum Alloy)
Axle Quantity
3 Axles
Tank volume(L)
48,000
Suspension type
Air S
- Tank semi-trailer
Product Description
Our service
VEHICLE CONFIGURATION
| Trailer Model | 46m³ 6 Compartments Aluminum Tank Trailer | ||
| Overall Dimension | 12290mm*2500mm*3850mm | ||
| (L*W* H)(mm) | |||
| Tare Weight(KG) | 6600KG±3% | ||
| Loading Weight( KG) | 46000L±1% Ullage | ||

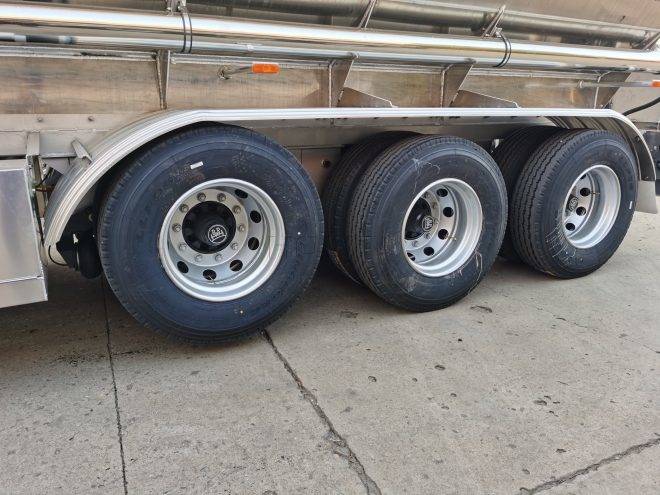

| Axle | 3 units FUWA-13T | ||
| Wheelbase(mm) | 5850mm+1310mm+1310mm | ||
| Suspension system | Air suspension | ||
| Compartments | 7500L/7500L/7500L/7500L/8000L/8000L | ||
| Barrel | Compartments | Ellipse Shape, Dual Cross-section | |
| Dish End Thickness | 6.0mm/AL 5182 | ||
| Shell Thickness | 5.5mm/AL 5182 | ||
| Bul Head Thickness | 6.0mm/AL 5182 | ||
| Surge PlateThickness | 6.0mm/AL 5182 | ||
| Pipeline & Accessories | Manhole | Model: KT03-560B+KT03-F-560,6sets | |
| Foot Valve | Model: KT02-100,6 sets. | ||
| Discharge Valve | Model: KT05-100(API),5sets including joints and cover | ||
| Discharging Box | 1set, Aluminum | ||
| Control Switch Group | One set | ||
| Sub-Frame&Accessories | Sub-Frame | Q345A/Bolt-on Design | |
| Toolbox | One set, Material: Aluminum | ||
| Spare Tire Carrier | One Sets | ||
| Mudguard | Material: Aluminum ,2sets | ||
| Side Guard | Material: Aluminum,2sets | ||
| Rear Bumper | Lamps bumper materials :Aluminum; | ||
| Bumper: Carbon steel | |||
| Fire Extinguisher | 8kgs＄2sets | ||
| Ladder | At the front end, Material: Aluminum | ||
| Electric & Brake Sys. | Lamp & Harness | 24V system/LED/seven core socket | |
| Brake system | Emergency Valve: WABCO, T30/T30 on all axles; Air Tanker:40L,3sets. | ||
| ABS | WABCO 4S/2M | ||
| Anti-corrosion | Shot blast | Shot blasting for Sub-frame and accessories | |
| Painting | PU Coating (Primer Coating Top Coating), Color as per Client’s | ||
| requirement | |||
| Decal | Safety sticker | 3M | |
| Main logo | As per Client’s requirement | ||
| Long Vehicle | 1sets＄as per clients ‘Requirement | ||
| Others | As per clients Requirement | ||
