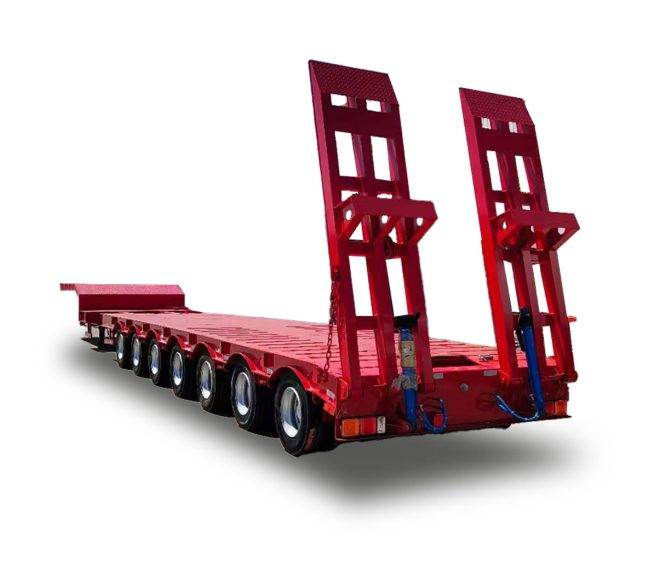

16Meter Retractable Over Lowbed Semi Trailer (With Container Support)
Payload(kg)
60,000
Overall dimension(mm)
16500×3000×1320
Suspension
Mechanical suspension
- Lowbed semi-trailer
Product Description
Our service
VEHICLE CONFIGURATION
| Overall Dimension | 16500×3000×1320(mm) |
| Tare weight | 13500 （kg） |
| Pay Load | 60,000 kg |
| Wheel base | 7400+1310+1310+1310 mm |
| Cargo platform | 12000×3000 mm(with double sides extension , each side 250 mm ) height 1100mm |
| Chassis | Material:Q345, I beam height:500mm,Thickness of flange(upper, middle, bottom): 20/12/20 mm |
| Axle | BPW, FUWA, HJ 12 ton |
| Suspension | Reinforced Mechanical suspension |
| Ladder | Mechanical ladder/Hydraulic ladder |
| Brake system | Dual line braking system , Wabco brand relay valve , |
| King Pin | 2.5 inch or 3 inch |
| Landing Gear | Jost brand 28 tons |
| Tyre | 11.00-20, 11.00R20,12.00-20, 12.00R20 |
| Painting | Frame sandblasting, polyurethane primer, polyurethane topcoat |
| Retractable chassis | 4 meter length mechanical style |
- Lowbed semi-trailer

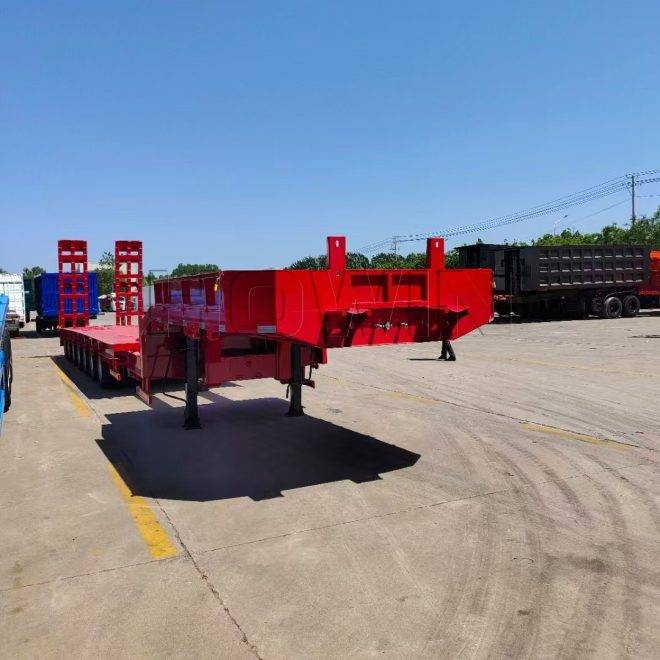

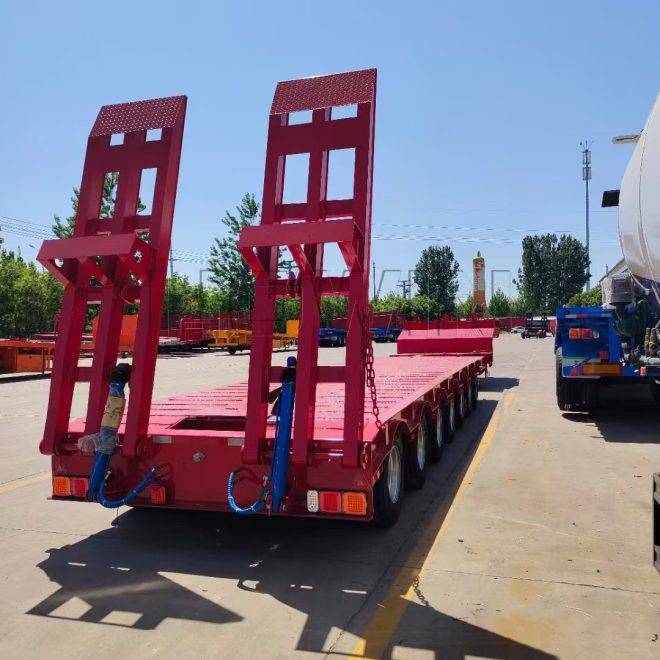

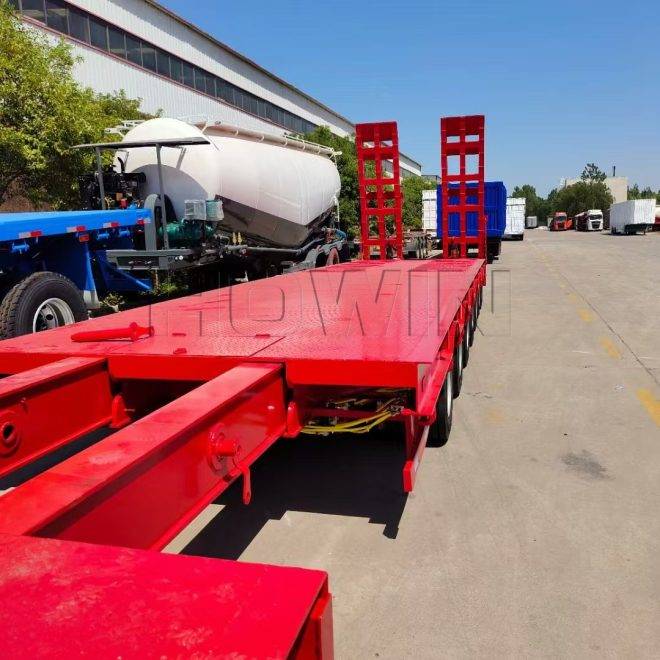

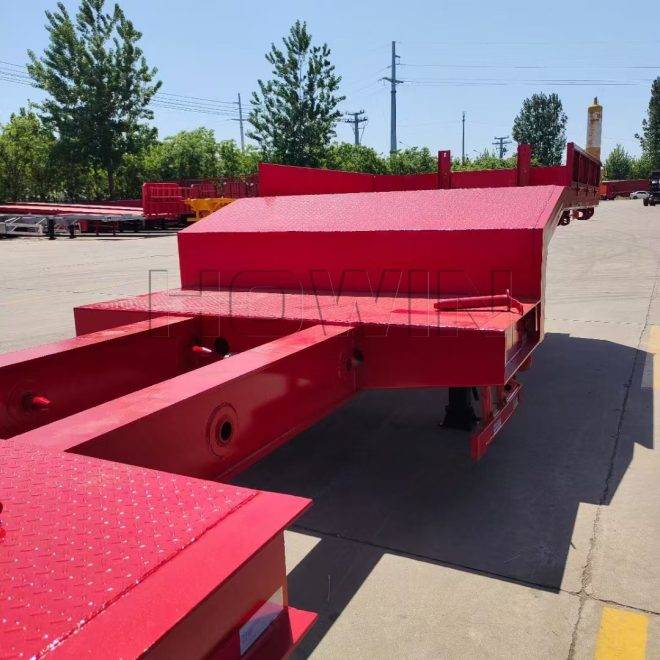

Product Detilas
