SINOTRUK

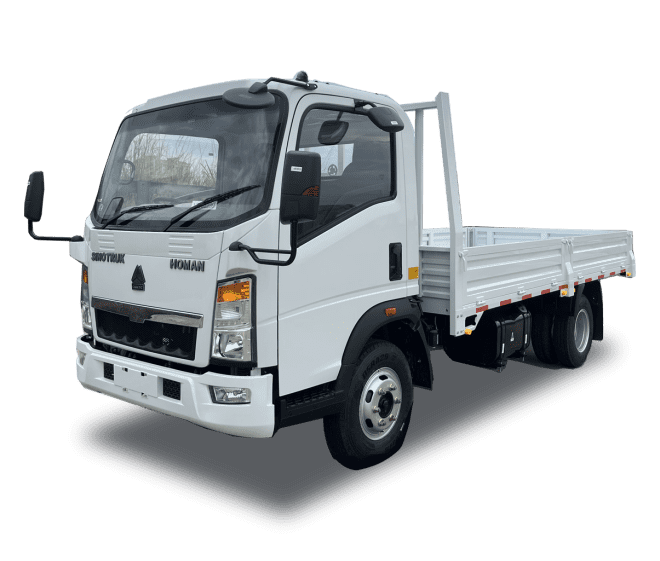

HOMAN 4×2 Light Cargo Truck
Driving Type
4×2
Box Body(mm)
6800*2300*2300
Application
Light-duty urban transportation
- Cargo Truck
Product Description
Our service
PRODUCT FEATURE
HOMAN 4×2 Light Cargo Truck is a lightweight cargo truck produced under the Homan brand, a subsidiary of China National Heavy Duty Truck Group (CNHTC). HOMAN light cargo trucks focus on fuel efficiency and driver comfort, which is designed primarily for urban and short-haul transport, making it ideal for transporting light cargo efficiently and reliably while also providing the necessary cargo capacity for urban logistics an distribution needs.
PARAMETERS
| Model | HOMAN 4×2 Cargo Truck | |
| Chassis Model | ZZ3158E3415C1R | |
| Drive type | 4×2 | |
| Kerb Weight(kg) | 6880 | |
| payload (kg) | 10000 | |
| Dimensions LxWxH(mm) | 9500×2500×3700 | |
| Wheelbase(mm) | 3650 | |
| Cabin | Model | 2080 |
| Engine | Model | YC4E160-33 |
| Horse Power(Hp) | 160 | |
| Rated power(kW/rpm) | 118kW/2600rpm | |
| Emission | Euro III | |
| Displacement | 4.26 | |
| Transmission | Model | 8JS85F |
| Gear position | 7 forwards &1 reverses | |
| AXLE | Front axle Load capacity(kg) | 3600 |
| rear axle Load capacity(kg) | 10000 | |
| Ratio | 6.33 | |
| Chassis | Thinkness(mm) | 9/11+8 |
| Leaf spring | Type | 280×（8+5） |
| Tire | Mode | 10.00R20 |
| Superstructure | body size(mm) | 6800X2300X2300 |
| Thinkness(mm) | bottom 4 ,side 3 | |
